Search Service

search cinemas.

Architechtere

Service Architecture

@startuml level2
!includeurl https://raw.githubusercontent.com/RicardoNiepel/C4-PlantUML/master/C4_Container.puml
LAYOUT_TOP_DOWN
'LAYOUT_AS_SKETCH
LAYOUT_WITH_LEGEND
skinparam backgroundColor #FFFFFF

System_Ext(client, "Client")

System_Boundary(c1, 'Micro Services') {
  Container(search, "Search", "Microservice", "search cinema data also provides endpoints that perform CRUD operations on indices in Elastic.")
  Container(cinemas_catalog, "cinemas catalog", "Microservice", "Cinema catalog, movie schedules")
  ContainerDb(elastic, "Elastic Search", "6.3", "Stores cinema information")
}

Rel(client, search, "Uses", "HTTP")
Rel(search, cinemas_catalog, "Uses", "HTTP")
Rel_R(search, elastic, "Uses", "HTTP")

@enduml

Infra Architecture

To see plantuml diagram in github

install chrome extension Pegmatite

Sequence to sync data with Cinemas

pick Transaction programatically
We can not use go-mysql-elasticsearch. because Aurora serverless does not support binlog
We don't use logstash for realtime syncing because it's not good at DELETE index for realtime syncing
We don't use AWS specific service to sync at first. because we have to manage in a different manner in locan and serverless environment

Create a cinema data

@startuml
skinparam sequence {
  ParticipantBorderColor #4B7EBB
  ParticipantBackgroundColor #548CD0
  ParticipantFontColor White
  ArrowColor #B2B2B2
  LifeLineBorderColor #A1A1A1
}

== Success ==

"Client" -> "Cinema Catalog Service": POST /cinemas
"Cinema Catalog Service" -> "Cinema Catalog Service": insert a cinema into DB
"Cinema Catalog Service" -> "Search Service": PUT /search/cinemas/:id
"Search Service" -> "Search Service": create a cinema index into ES
"Cinema Catalog Service" <- "Search Service": res done
"Client" <- "Cinema Catalog Service": res done

== Error transaction ==

"Client" -> "Cinema Catalog Service": POST /cinemas
"Cinema Catalog Service" -> "Cinema Catalog Service": insert a cinema into DB
"Cinema Catalog Service" -> "Search Service": PUT /search/cinemas/:id
"Search Service" -[#red]> "Search Service": create a cinema index into ES
"Cinema Catalog Service" <[#red]- "Search Service": res ERROR!!
"Cinema Catalog Service" -> "Cinema Catalog Service": delete a cinema from DB
"Client" <[#red]- "Cinema Catalog Service": res ERROR!!

@enduml

Update a cinema data

@startuml
skinparam sequence {
  ParticipantBorderColor #4B7EBB
  ParticipantBackgroundColor #548CD0
  ParticipantFontColor White
  ArrowColor #B2B2B2
  LifeLineBorderColor #A1A1A1
}

== Success ==

"Client" -> "Cinema Catalog Service": PUT /cinemas/:id
"Cinema Catalog Service" -> "Cinema Catalog Service": select for update
"Cinema Catalog Service" -> "Cinema Catalog Service": update a cinema in DB
"Cinema Catalog Service" -> "Search Service": PUT /search/cinemas/:id
"Search Service" -> "Search Service": update a cinema index in ES
"Cinema Catalog Service" <- "Search Service": res done
"Client" <- "Cinema Catalog Service": res done

== Error transaction ==

"Client" -> "Cinema Catalog Service": PUT /cinemas/:id
"Cinema Catalog Service" -> "Cinema Catalog Service": select for update
"Cinema Catalog Service" -> "Cinema Catalog Service": update a cinema in DB
"Cinema Catalog Service" -> "Search Service": PUT /search/cinemas/:id
"Search Service" -[#red]> "Search Service": update a cinema index into ES
"Cinema Catalog Service" <[#red]- "Search Service": res ERROR!!
"Cinema Catalog Service" -> "Cinema Catalog Service": update a cinema in DB to rollback
"Client" <[#red]- "Cinema Catalog Service": res ERROR!!

@enduml

DELETE a cinema data

@startuml
skinparam sequence {
  ParticipantBorderColor #4B7EBB
  ParticipantBackgroundColor #548CD0
  ParticipantFontColor White
  ArrowColor #B2B2B2
  LifeLineBorderColor #A1A1A1
}

== Success ==

"Client" -> "Cinema Catalog Service": DELETE /cinemas/:id
"Cinema Catalog Service" -> "Cinema Catalog Service": select for update
"Cinema Catalog Service" -> "Cinema Catalog Service": delete a cinema in DB
"Cinema Catalog Service" -> "Search Service": DELETE /search/cinemas/:id
"Search Service" -> "Search Service": delete a cinema index in ES
"Cinema Catalog Service" <- "Search Service": res done
"Client" <- "Cinema Catalog Service": res done

== Error transaction ==

"Client" -> "Cinema Catalog Service": DELETE /cinemas/:id
"Cinema Catalog Service" -> "Cinema Catalog Service": select for update
"Cinema Catalog Service" -> "Cinema Catalog Service": delete a cinema in DB
"Cinema Catalog Service" -> "Search Service": DELETE /search/cinemas/:id
"Search Service" -[#red]> "Search Service": delete a cinema index into ES
"Cinema Catalog Service" <[#red]- "Search Service": res ERROR!!
"Cinema Catalog Service" -> "Cinema Catalog Service": insert a cinema in DB to rollback
"Client" <[#red]- "Cinema Catalog Service": res ERROR!!

@enduml

Sync one cinemas data (Pull style)

It will update the cinema of given id.

@startuml
skinparam sequence {
  ParticipantBorderColor #4B7EBB
  ParticipantBackgroundColor #548CD0
  ParticipantFontColor White
  ArrowColor #B2B2B2
  LifeLineBorderColor #A1A1A1
}

"Client" -> "Search Service": GET /search/cinemas/:id/sync
"Cinema Catalog Service" <- "Search Service": GET the cinema of given id
"Cinema Catalog Service" -> "Search Service": res the cinema
"Search Service" -> "Search Service": put a cinemas index into Elasticsearch
"Client" <- "Search Service": res done

@enduml

Sync All cinemas data

use this way or logstash

@startuml
skinparam sequence {
  ParticipantBorderColor #4B7EBB
  ParticipantBackgroundColor #548CD0
  ParticipantFontColor White
  ArrowColor #B2B2B2
  LifeLineBorderColor #A1A1A1
}

"Client" -> "Search Service": req /search/cinemas/sync

loop until end of all cinemas
  "Cinema Catalog Service" <- "Search Service": req cinemas
  "Cinema Catalog Service" -> "Search Service": res cinemas
  "Search Service" -> "Search Service": put a cinemas index into Elasticsearch
end

"Client" <- "Search Service": res done

@enduml

To see plantuml sequence in github

install chrome extension Pegmatite

Running tests using NPM Scripts

npm run test

How to write tests

The tests are written in Mocha and the assertions done using Chai

"mocha",
"chai",
"chai-http",

Test files are created under test folder.

Deploy to AWS manually

Configure AWS Credentials before running this command.

npm run deploy

Deploy to AWS by CircleCI

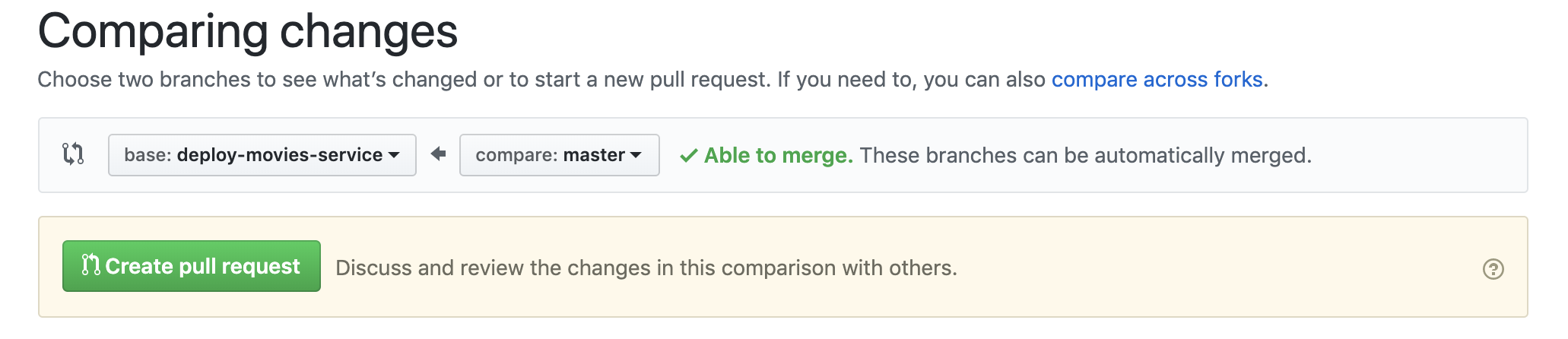

make PR from master to deploy-movies-service in GitHub, merge it.

Database migration locally

db-migrate up --config db-spec/database.json -e dev

Database migration in AWS

serverless invoke -f db-migrate-up -l

TSLint

TSLint is a code linter that helps catch minor code quality and style issues.

TSLint rules

All rules are configured through tslint.json.

Running TSLint

To run TSLint you can call the main build script or just the TSLint task.

npm run build:live   // runs full build including TSLint
npm run lint  // runs only TSLint

Request flow

plantuml

Endpoint

see swagger.yaml
API Document endpoints

swagger Spec Endpoint : http://localhost:8001/api-docs

swagger-ui Endpoint : http://localhost:8001/docs

Service Dependency

plantuml

FAQ

Environment vars

This project uses the following environment variables:

Name	Description	Default Value
CORS	Cors accepted values	"*"

Project Structure

The folder structure of this app is explained below:

Name	Description
dist	Contains the distributable (or output) from your TypeScript build.
node_modules	Contains all npm dependencies
src	Contains source code that will be compiled to the dist dir
src/config	Application configuration including environment-specific configs
src/controllers	Controllers define functions to serve various express routes.
src/lib	Common libraries to be used across your app.
src/middlewares	Express middlewares which process the incoming requests before handling them down to the routes
src/routes	Contain all express routes, separated by module/area of application
src/models	Models define schemas that will be used in storing and retrieving data from Application database
src/monitoring	Prometheus metrics
src/index.ts	Entry point to express app
test	Contains test code that tests all of codes in src directory
integration-test	Contains integration test run by `npm run integration-test` and load test (currently jmeter) `npm run jmeter`
db-spec	Contains a db-migration config file, dbspec.md in plantuml, test-data.sql
migrations	Contains db-migration files by `db-migrate create`
postman	Contains postman collection files
package.json	Contains npm dependencies as well as build scripts
tsconfig.json	Config settings for compiling source code only written in TypeScript
tslint.json	Config settings for TSLint code style checking
serverless.yml	Config settings for Serverless Framework
nodemon.json	Config settings for nodemon to watch file changed to make local env development smoother

npm scripts

All the different build steps are orchestrated via npm scripts. Npm scripts basically allow us to call (and chain) terminal commands via npm.

Npm Script	Description
`start`	Runs full build and runs node on dist/index.js. Can be invoked with `npm start`
`build:copy`	copy the *.yaml file to dist/ folder
`build:live`	Full build. Runs ALL build tasks
`build:dev`	Full build. Runs ALL build tasks with all watch tasks
`dev`	Runs full build before starting all watch tasks. Can be invoked with `npm dev`
`test`	Runs build and run tests using mocha
`lint`	Runs TSLint on project files

Using the debugger in VS Code

Node.js debugging in VS Code is easy to setup and even easier to use. Press F5 in VS Code, it looks for a top level .vscode folder with a launch.json file.

{
        "version": "0.2.0",
        "configurations": [
            {
                "type": "node",
                "request": "launch",
                "name": "Launch Program",
                "program": "${workspaceFolder}/dist/index.js",
                "preLaunchTask": "tsc: build - tsconfig.json",
                "outFiles": [
                    "${workspaceFolder}/dist/*js"
                ]
            },
            {
                // Name of configuration; appears in the launch configuration drop down menu.
                "name": "Run mocha",
                "request":"launch",
                // Type of configuration. Possible values: "node", "mono".
                "type": "node",
                // Workspace relative or absolute path to the program.
                "program": "${workspaceRoot}/node_modules/mocha/bin/_mocha",
                // Automatically stop program after launch.
                "stopOnEntry": false,
                // Command line arguments passed to the program.
                "args": ["--no-timeouts", "--compilers", "ts:ts-node/register", "${workspaceRoot}/test/*"],
                // Workspace relative or absolute path to the working directory of the program being debugged. Default is the current workspace.
                // Workspace relative or absolute path to the runtime executable to be used. Default is the runtime executable on the PATH.
                "runtimeExecutable": null,
                // Environment variables passed to the program.
                "env": { "NODE_ENV": "test"}
            }
        ]
    }

Swagger Middleware

The project is using npm module oas-tools that provides middleware functions for metadata, security, validation and routing, and bundles Swagger UI into Express using OpenAPI 3.0 spec.

It is also possible to set configuration variables, these are them:

Name	Type	Explanation / Values
`logLevel`	`String`	Possible values from less to more level of verbosity are: error, warning, custom, info and debug. Ignored if `customLogger` is used. Default is info.
`logFile`	`String`	Logs file path. Ignored if `customLogger` is used.
`customLogger`	`Object`	Replaces the included logger with the one specified here, so that you can reuse your own logger. `logLevel` and `logFile` will be ignored if this variable is used. Null by default.
`controllers`	`String`	Controllers location path.
`strict`	`Boolean`	Indicates whether validation must stop the request process if errors were found when validating according to specification file. false by default.
`router`	`Boolean`	Indicates whether router middleware should be used. True by default.
`validator`	`Boolean`	Indicates whether validator middleware should be used. True by default.
`docs`	`Boolean`	Indicates whether API docs (Swagger UI) should be available. True by default. The swagger-ui endpoint is acessible at /docs endpoint.
`oasSecurity`	`Boolean`	Indicates whether security components defined in the spec file will be handled based on `securityFile` settings. `securityFile` will be ignored if this is set to false. Refer to oasSecurity for more information. False by default.
`securityFile`	`Object`	Defines the settings that will be used to handle security. Ignored if `oasSecurity` is set to false. Null by default.
`oasAuth`	`Boolean`	Indicates whether authorization will be automatically handled based on `grantsFile` settings. `grantsFile` will be ignored if this is set to false. Refer to oasAuth for more information. False by default.
`grantsFile`	`Object`	Defines the settings that will be use to handle automatic authorization. Ignored if `oasAuth` is set to false. Null by default.
`ignoreUnknownFormats`	`Boolean`	Indicates whether z-schema validator must ignore unknown formats when validating requests and responses. True by default.

For setting these variables you can use the function configure and pass to it either a JavaScript object or a yaml/json file containing such object.

const options = {
        controllers: basePath + "/routes",
        loglevel: "debug",
        strict: true,
        router: true,
        validator: true,
        docs: !isProd
    };
    swaggerTools.configure(options);

To initialise just type the following:

const swaggerDoc = loadDocumentSync(basePath + "/definition/swagger.yaml");

    swaggerTools.initialize(swaggerDoc, app, function() {
        cb();
    });

Swagger Router

The Swagger Router connects the Express route handlers found in the controller files on the path specified, with the paths defined in the Swagger specification (swagger.yaml). The routing looks up the correct controller file and exported function based on parameters added to the Swagger spec for each path.

Here is an example for a hello world endpoint:

paths:
/hello:
  get:
    x-swagger-router-controller: helloWorldRoute
    operationId: helloWorldGet
    tags:
      - /hello
    description: >-
      Returns the current weather for the requested location using the
      requested unit.
    parameters:
      - name: greeting
        in: query
        description: Name of greeting
        required: true
        schema:
          type: string
    responses:
      '200':
        description: Successful request.
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/Hello'
      default:
        description: Invalid request.
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/Error'

The fields x-swagger-router-controller will point the middleware to a helloWorldRoute.ts file in the route's directory, while the operationId names the handler function to be invoked.

Pagination

keyset pagination

Pagination of Ordered Queries

Like many engineering decisions, choosing pagination techniques involves tradeoffs. It’s safe to say that keyset pagination is most applicable for the average site with ordered linear access Since users typically access pages of information in a linear fashion, keyset pagination is usually considered the best choice for paginating ordered records in high-traffic web servers.
json:api cursor-pagination

Cursor-based pagination (aka keyset pagination) is a common pagination strategy that avoids many of the pitfalls of “offset–limit” pagination.
keyset pagination example

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

search-service

search-service

Readme.md

Search Service

Architechtere

Service Architecture

Infra Architecture

To see plantuml diagram in github

Sequence to sync data with Cinemas

Create a cinema data

Update a cinema data

DELETE a cinema data

Sync one cinemas data (Pull style)

Sync All cinemas data

To see plantuml sequence in github

Running tests using NPM Scripts

How to write tests

Deploy to AWS manually

Deploy to AWS by CircleCI

Database migration locally

Database migration in AWS

TSLint

TSLint rules

Running TSLint

Request flow

Endpoint

Service Dependency

FAQ

Environment vars

Project Structure

npm scripts

Using the debugger in VS Code

Swagger Middleware

Pagination

keyset pagination

Files

search-service

Directory actions

More options

Directory actions

More options

Latest commit

History

search-service

Folders and files

parent directory

Readme.md

Search Service

Architechtere

Service Architecture

Infra Architecture

To see plantuml diagram in github

Sequence to sync data with Cinemas

Create a cinema data

Update a cinema data

DELETE a cinema data

Sync one cinemas data (Pull style)

Sync All cinemas data

To see plantuml sequence in github

Running tests using NPM Scripts

How to write tests

Deploy to AWS manually

Deploy to AWS by CircleCI

Database migration locally

Database migration in AWS

TSLint

TSLint rules

Running TSLint

Request flow

Endpoint

Service Dependency

FAQ

Environment vars

Project Structure

npm scripts

Using the debugger in VS Code

Swagger Middleware

Pagination

keyset pagination
